Scotsman UN324AX-1 Ice Maker with Bin, Nugget-Style
Couldn't load pickup availability
Product Description

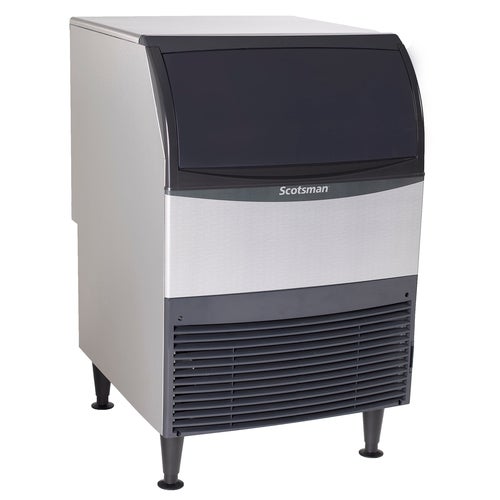

The Scotsman UN324AX-1 is an undercounter, nugget style, air cooled ice maker with bin in a 24-inch width. It delivers up to 340 lb of ice production per 24 hours at 70°/50°, and is AHRI certified at 266 lb when tested at 90°/70°. The integrated bin provides 80 lb of H2 Nugget Ice storage.
Designed with operator-focused details, this model features sealed maintenance-free bearings, a stainless steel auger and evaporator, a front facing removable air filter, and a recessed utility chase. A unit specific QR code, included ice scoop, 6-inch adjustable legs, and a 5.5-foot power cord with NEMA 5-15P are standard. Using R290 refrigerant, it operates on 115v/60/1-ph, meets ENERGY STAR®, cULus, and NSF requirements, and is engineered and assembled in USA.
Key Features
- Air cooled, self contained condenser in a 24" undercounter width
- Up to 340 lb/24 hr at 70°/50°; 266 lb AHRI certified at 90°/70°
- 80 lb bin storage capacity of H2 Nugget Ice
- Sealed maintenance-free bearings; stainless steel auger & evaporator
- Front facing removable air filter with recessed utility chase
- Unit specific QR code; includes 6" legs, ice scoop, and 5.5' NEMA 5-15P power cord
| Manufacturer | Scotsman |
|---|---|
| Model Number | SCOT-UN324AX-1 |
